How to simulate PIC circuits?
For a component to be simulated in Mixed Mode simulator, it should have a corresponding primitive, which will contain information about its behavioral characteristics, which the simulator uses to construct the final output. The system has a primitive for PIC microcontroller, therefore it will be possible to simulate it if there is an associated binary file of the Assembly language program. The binary file may be assigned to the microcontroller as follows.

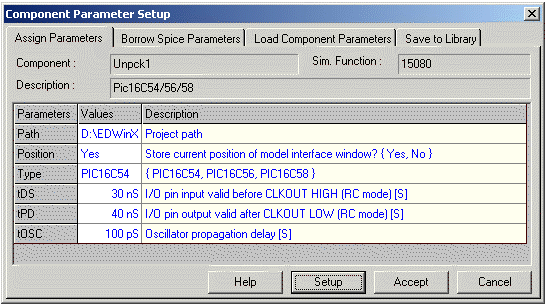

Mixed Mode simulator ->Tools->Components -> Component Properties (Second function tool ) -> Change simulation Parameters (Second Option tool ) ->click on PIC, a window appears as shown below, click on Setup to view the Setup window. .
